RS PRO RS PRO Relay terminal block 6 poles

Specification

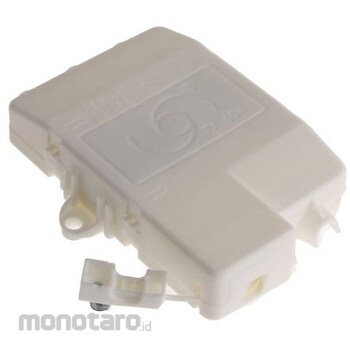

Number of poles: 6 Rated current: 20A Terminal method: Embedded screw Cable size: 22 -> 12 AWG Material: Nylon Rated voltage: 450 V Operating temperature Min: -5°C Operating temperature Max: +85°C Multi-purpose Terminal Box. -purpose terminal box that houses six poles. First three poles are marked E,L ; N for mains fixing and are screw and/or tab fixing. Output for these poles are 4tabs per pole. Three spare poles are also provided, each having three fixing tabs. Mains input is via a screw cable clamp and 3 cable grip ports are available for fitting up to three output cables. A spare cable grip port on the input is also provided. snap points with a screwdriver. Box can be mounted via two fixing ears. Rated at 400V.10A the box is self extinguishing white polymide to UL94V-2 and IEC 695-2 to 850oC. Operating temperature is 125oC max.
