RS PRO RS PRO relay interface

Specification

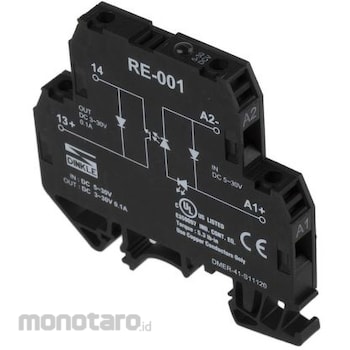

Maximum Input Current: 8 mA Mounting Style: DIN Rail Operating Temperature Min: -25°C Operating Temperature Max: +60°C Length: 61.7mm Width: 91mm Depth: 6.2mm Operating Temperature Range: -25 to +60°C RS Pro DIN Rail Mount Optocouplers. RS Pro optocouplers are a new offshoot of opto-isolated, solid state relays and rail mount terminal blocks. The module utilizes opto-coupled isolation to protect PLC and embedded applications from electrical interference, providing a noise-free solution. RS brand optocouplers are ideal for a wide variety of control machines, factory/process automation, communication equipment, and the building industry. Slim design (6.1 mm depth) Color and number coding for wire identification LED status indicator Low temperature rise and safe for products 10x faster (100 Hz) switching frequency to meet high accuracy requirements Dust proof and moisture proof Long life, low defect rate Patented cross jumper (905-4318; 905-4318) connects adjacent poles and simplifies switchboard configuration
