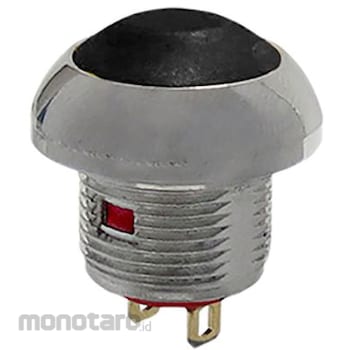

RS PRO RS PRO pushbutton switch 200 mA

Specification
Switch Operation: Momentary Contact Configuration: 1 Pole On/Off Switch Mounting Type: Screwed Panel Cutout Diameter: 13.6mm Contact Current Rating: 200 mA @ 50 V dc, 500 mA @ 32 V ac Contact AC Voltage Rating: 250V Contact DC Voltage Rating: 50V Voltage Rating: 250 V ac @ 200 mA, 50 V dc @ 200 mA Illumination: None Actuator Color: White LED Color: Yellow Actuator Type: Cap Subminiature Push Button Switch, Round. The button switch is designed for a wide range of applications and environments with a temperature range of -30 to +85 °C and has an IP7 degree of protection (top). The switch is single-pole, single-throw and provides off-momentary switching action. They are also panel mountable and each unit comes with an M12 nut, lock washer and splash proof O-ring. Electrical life: 500,000 make/break cycles (at full load) Mechanical life: 1,000,000 operations (at no load) Operating force: 2-5 N (max) IP67 sealed (top) contact Contacts: Gold over silver Panel cutout: 13.6 mm round button
