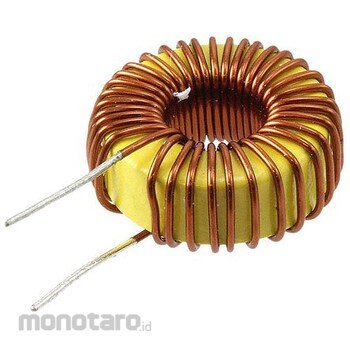

RS PRO RS Pro Power Inductor, 47 μH, 3A, 48mΩ
#Grup produk P115392692
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationInductance = 47 μH Maximum DC Current = 3A Mounting Type = Radial Maximum DC Resistance = 48mΩ Tolerance = ±15% Diameter = 20mm Height = 8mm Dimensions = 20 (Dia.) x 8mm Series = DP Terminal Type = Radial Leaded ISO -9001:2000 S-16949:2002 ISO-14001:2004. RS Pro Toroidal Power Inductors, 22 to 1000 uf. RS Pro toroidal power inductors can be used for EMI filtering and energy storage. The compact design is effective in controlling the AC output ripple of switch mode power supplies. Various combinations of inductance values and current ratings are available. Features Low cost Zero radiation design High temperature soldering, pinned leads for easy board mounting Operating frequency up to 100 kHz RoHS compliant
