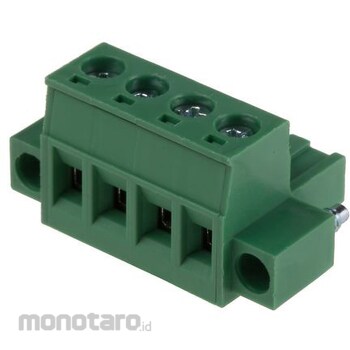

RS PRO RS PRO PCB terminal block, 950 series, 5.08mm pitch
#Grup produk P115376092
Spesifikasi
| Cell Spacing (mm) | 5.08 |
|---|---|
| Color | Green |
| Depth (mm) | 15 |
| Material | polyamide |
| Number of Contacts | 4 |
| Number of Lines | 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | 15(UL),18(IEC) |
| Rated Voltage (V) | 600 |
| Series | 950 |
| Type | Plug |
| Type of Housing | Straight |
| Type of Sign | screw |
| Type of Terminal | Plugin |
| male / female | Female |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationRS 5.08 mm right angle terminal block plug connector with flange. The right angle cable mounting terminal block plug connector has a 5.08 mm pitch spacing, flange and 300 V 15 A rating. These 5.08 mm cable mount plug terminal blocks have an M2.5 rising cage clamp screw terminal that accepts 28 -> 12 AWG wire and a green PA66 housing.
