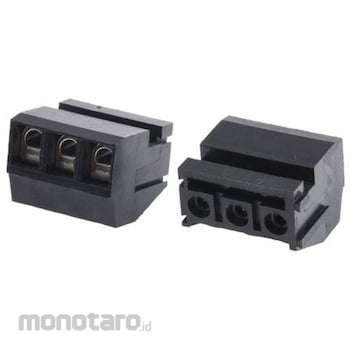

RS PRO RS PRO PCB Terminal Block, 5mm Pitch, 1 Row, 3 Way, Black
#Grup produk P115375695
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
RS 5.0mm PCB Pin Pluggable Terminal Block. This 5mm pitch pin pluggable PCB terminal block connector is designed for use with pin strip headers (see part number 897-1323) for vertical or horizontal mounting. This 5mm PCB pluggable terminal block features a black UL94-V0 flame-retardant PA66 housing, tin-plated copper wire protector terminals, guide pin alignment, nickel-plated steel M2.5 fixing screws, and accepts a wire size range of 0.33-2mm (22-14 AWG).
Feature
SpecificationNumber of poles = 3 Pitch = 5mm Number of rows = 1 Mounting type = Through-hole mounting Gender = Female Termination method = Screw type = Plug Rated current = 10A Connection direction = Vertical Color = Black Rated voltage = 250V Depth = 11mm
