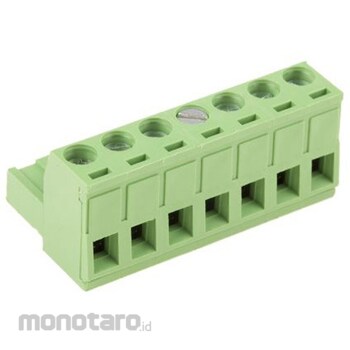

RS PRO RS PRO PCB Terminal Block, 5.08mm Pitch, 1 Row, 7 Way, Green

Pluggable terminal block type = Number of plug positions = 7
Pitch = 5.08mm
Number of rows = 1
Connection Direction = Right Angle Mounting Type = Through-Hole Mounting Termination Method = Screw Rated Current = 15A
Rated voltage = 300 V
Color = Green Material = Polyamide

RS 5.08mm Rising Clamp Terminal Block Plug Connector. RS Pro RS Pro offers high quality PCB terminal blocks with a 5.08mm pitch.
It consists of a green polarized molding supporting flame retardant UL94-V0 PA66.
This 5.08mm terminal block has tin-plated brass terminals and M2.5 fixing screws for a stable connection.
These products are compatible with cable sizes from 0.33-2mm2.
Available in solid or stranded wire with guide pin alignment.
This terminal block allows you to safely transfer data, signals and power directly to the board.
It is best used as a permanent solution, but can be used in temporary circuits.
Features and Benefits: . 5.08 mm pitch . High quality construction materials . Polarized moulded from green UL94-V0 flame retardant PA66 . Captive threads . Guided pinout . Operating temperature: -40°C to +105°C . This connector uses M2.5 slotted (L) threads.
If you need a driver, please see ; , , 125-3078 , , 125-3078 .
