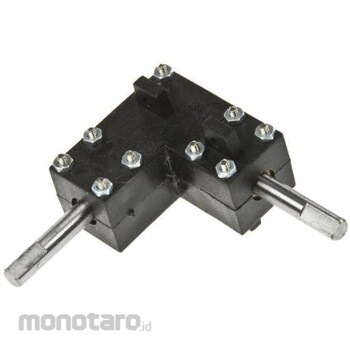

RS PRO RS PRO gear head

Specification
Gear ratio: 1 1 * Gearbox type: L shape * Shaft diameter: 5mm * Overall length: 57.3mm * Overall width: 30mm * Overall depth: 57.3mm * Maximum speed: 500rpm * Bevel gearbox-1 1 ratio The device has steel bevel gears and shafts inserted in ball races and sintered bronze bearings. There is one ball race and one sintered bronze bearing per shaft. The ball race also functions as a thrust race, protecting against the load on the shaft of the bevel gear. The molded housing is made of 30% glass fiber reinforced nylon and has four mounting holes. The output shaft is O5 mm with a flat key. The length from the heel of the main body to the shaft end is about 57.5 mm. Long-term lubrication designed for robust service Weight 42 g Backlash approx. 1 ° Gear mild steel according to BS970 part 3, 1991, 230MO7
