RS PRO RS PRO Crimp pin contact Tube type cable lug Ratchet

Specification

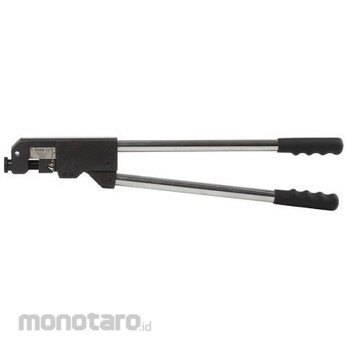

Crimping tool type: Ratchet RS PRO mechanical crimping tool 10 to 120 mm2. The RS PRO mechanical hand crimping tool with fully adjustable die is designed for professional use and manufactured from high quality materials. The frame is made of high quality steel to ensure durability and long service life. See part number 119-160 119-160 for typical terminals. Features and Benefits: Screw adjustment (no ratchet) terminates cable lugs in dimensions from 10 to 120 mm2 Designed for aluminum (8 AWG to 4/0) and copper (8 AWG to 250 MCM) terminals Easy to handle Non-slip handle grip Ratcheting Tool body made of high-quality steel for superior strength and long tool life Typical Applications Crimp tools can be used in a variety of applications, including: Maintenance & Repair Electrical Cable Assembly Frequently Asked Questions: What is the difference between non-insulated and insulated crimp tools? Non-insulated crimp tools are used for general purpose applications, while insulated crimp tools are VDE tested up to 1000 V and are designed for use where currents are present. How to maintain the product In order to maintain good functionality and long life, shafts and other moving parts must be lubricated on a regular basis. If the tool is exposed to dust or other contamination, we recommend lubrication* at least every 10,000 cycles. You should also check the crimp die nest adjustment. If the tool preload is significantly reduced, the pressure adjustment axis should be readjusted. * Use low-viscosity non-mineral oil The Importance of Quality Crimps When using a crimping tool on a terminal, two crimps are made at the same time. One is the electrical connection between conductors and terminals. The other is an insulating crimp that provides strain relief against vibration and tension. It is important that the electrical connection be airtight with no air gaps between the wire strands and the termination. Voids can cause corrosion, resistance, heating, and damage to electrical connections. A good quality crimping tool will ensure a perfectly airtight crimp and prevent future deterioration.
