RS PRO RS Pro coupler shielded GTC Sealed series

Specification

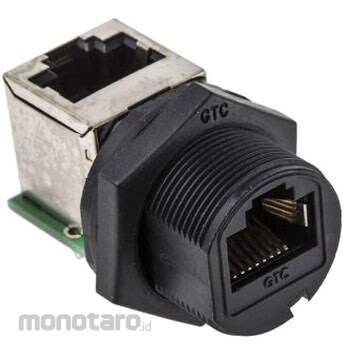

Type = 90° Coupler Interface Type = RJ45 Female Shield Type = Shielded Length = 36.9mm Width = 29.1mm Depth = 36.2mm Series Number = GTC Sealed RS Pro Waterproof RJ45 Plastic Panel Mount Jack. RS Pro Quality A series of IP67 RJ45 panel mount jacks. These rugged screw-on connectors are secured with 13/16-28 UN threads and are recommended for panel thicknesses between 0.8 and 4.0 mm. The waterproof connectors have a rugged PA66 housing construction with a silicone panel gasket for a full seal. Standard panel mounting type and coupling type are available. All models boast high reliability and excellent quality. Features and Benefits: Wide temperature range: -40 to +105°C IP67 rating Rugged construction Applications Wireless outdoor APs Outdoor LED and display lighting Marine Automotive Military Part number: 111-6735 111- 6735 - Standard panel mount Part number: 111-6746 111-6746 - Straight through coupling Part number: 111-6747 111-6747 - 90° coupling
