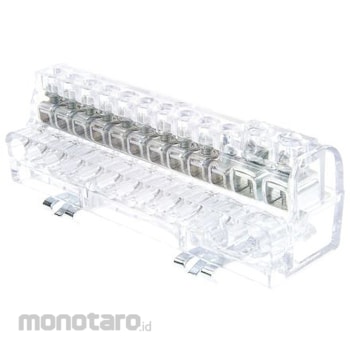

RS PRO RS PRO common block

Specification
Number of poles: 12, Cable size: 10.5 AWG, Current rating: 100A, Rail mounting compatibility: Yes, Termination method: Recessed screw, Length: 104.5mm, Width: 50mm, Height: 42mm, Color: Clear, Rated voltage: 450, Cable CSA: 16mm2, Operating temperature: Max. +85°C. Commoning Blocks (DIN Rail Mounting). Designed for commoning same-potential cables, the terminal blocks are ideal for use in junction boxes, panel boards, equipotential earthing applications, and where disconnection of branch wires must be possible without interruption on the main conductors. Each pole of the terminal is linked internally by a copper busbar, providing a low-resistance connection path. Certain blocks are available in mixed pole size format, e.g., stock no. 388-2827 is shown as +6. This is 16mm2 x 6.6mm2. See comparison table for detail(TM) of other formats. 450V, DIN rail mounting commoning blocks fit all types of Top hat rails. Current rating by CSA 6mm (16A), 16mm (100A), 35mm (170A) The mixed pole format have current rating corresponding to the max. CSA accomodated
