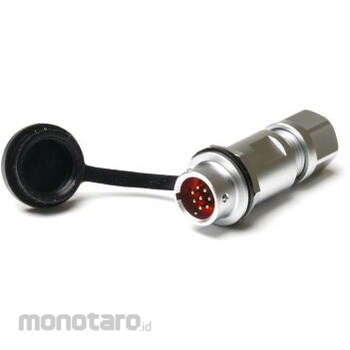

RS PRO RS PRO Circular Connector, 8 Way, M8, Cable Mount

RS Pro SF811B Series In-line Cable Connectors. Made from high-quality materials, this fantastic range of cable connectors from RS Pro is designed for use in medical equipment and instrumentation.
This M8 in-line connector is available with male pins or female sockets, and is rated for 30V or 125V and 3A or 5A.
These products are ideal for creating your own customized connector systems where a secure, waterproof connection is required.
Mounting circular connectors are coupling devices that are quick and easy to install, making the job easy for both engineers and DIY enthusiasts.
To maintain the integrity of the IP67 rating and a professional installation, each element must be assembled in a specific order.
Wire cable and diameter are critical components, so before soldering, ensure the correct wire gauge (AWG) is used according to the application standard.
Why choose these industrial circular connectors? The RS Pro SF811B series is a push-pull connector available in plug and socket connection types, with a highly waterproof connection.
These are popular in high-end equipment due to their quality and performance.
They can be used for either data or power applications and are ideal for medical, communications and instrumentation applications.
Features and Benefits. SF811B Inline Connector. Connector Size: M8. Push-Pull Coupling System. Type: Plug. 2, 3, 4, 6, and 8-position. Solder terminals. Waterproof. Interconnects to cable/panel mount connectors. Panel Cutout Size: 8mm. Cable Outer Diameter: 4-5mm. Wire Sizes: 0.75/18, 0.5/ 20mm. Housing Material: Chrome-Plated Brass. Contact Material: Brass, Gold-Plated. Insulation Resistance: 2000 MΩ. 500 Mating Cycles. Temperature Range: -40 to +85°C. Rated Voltage: 30V, 125V. Rated Current: 3A, 5A. IP67. RS Pro Male Inline Cable Mount Connector Option. 2-Pin, 5A, 125V. RS Part Number (206-5215) 206-5215. 3 pin, 5 A, 125 V, RS part number ( 206-5216) 206-5216. 4 pin, 3 A, 30 V, RS part number (206-5218) 206-5218. 6 pin, 3 A, 30 V, RS part number (206-5219) 206-5219. 8 pin, 3 A, 30 V, RS part number (206-5220) 206-5220 Interconnect. RS Pro SF810 series cable/panel mount connectors and interconnects suitable for medical, communications, instrumentation and industrial applications.
Why choose RS PRO for your industrial circular connectors? RS PRO is our own brand, offering you a wide range of high-quality, great value products giving you more choice.
Trusted by engineers all over the world, all RS PRO products are rigorously tested to demanding industry standards.
If we are confident in the quality of these products, they will only be given the RS PRO seal of approval.
This will help you work with confidence.
