RS Pro 25 W Aluminium Housed Wirewound Resistor. From RS Pro, this 25 W aluminium housed power resistor meets the requirements of MIL18546, IEC115 and RoHS.
Features. Compact and high power rating. High power-to-volume ratio. Winding technique to maximize high pulse capacity. Applications. Designed for direct heat sink mounting with thermal compound for maximum performance.

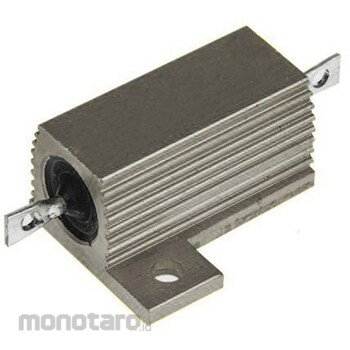

RS PRO RS PRO Chassis Mount Resistor, 25W, 2.2 Ohm, ±5%
#Grup produk P115265653
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationResistance = 2.2Ω
Rated power = 25W
Package/Case = Aluminum Housing Tolerance = ±5%
Technology = Wirewound Termination Style = Axial Operating Temperature Max = +200°C
Minimum temperature coefficient = -100 ppm/°C
Maximum temperature coefficient = +100 ppm/°C
Dimensions = 51 x 28 x 14.6mm
Overall width = 28mm
