RS PRO RS PRO Analogue Voltmeter AC Analogue

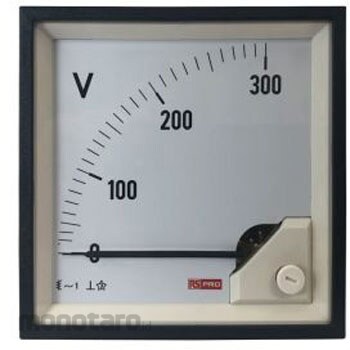

RS Pro AC Analogue Panel Voltage This 96mm x 96mm cutout AC analogue panel voltmeter from RS Pro operates over a measurement range from 0V (AC) to 300V (AC).
DIN 96 style panel meters consist of a moving iron that indicates the root mean square (RMS) value, making it virtually independent of system waveforms.
The scale is calibrated to a minimum of 10%.
It is housed in a molded polycarbonate case and is suitable for measuring voltages in the frequency range 15-100 Hz.
Features and Benefits Operating temperature range: -10°C to 65°C Accuracy: 1% Pointer: Knife-edge type Pointer deflection: 0° to 90° Nominal operating range: 6V to 100V Shock resistance: 15g (pulse duration 11ms) Moulded rectangular case suitable for mounting control/switchgear panels in machine consoles Overload: 1.2 times nominal voltage (continuous) Relative humidity: Less than 75% annual average (non-condensing) Certified to UL 94 V-0 2014/30/EC (EMC Directive) 2014/35/EC (Low Voltage Directive) CE certified IP52 rating EN61010 VDE0100 to 410: 2018-10 Certified to IEC529 IEC61010 ISO20653:2006-08
