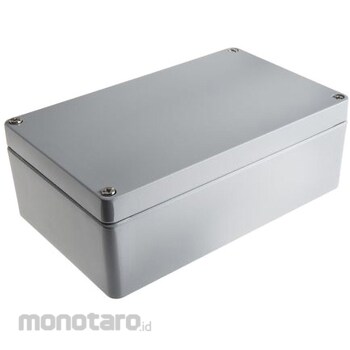

RS PRO RS Pro aluminum case, aluminum gray, 260 x 160 x 90mm
#Grup produk P115246931
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationBody Material = Aluminum Die Cast Gasket Material = Neoprene External Length = 260 mm External Width = 160 mm External Height = 90 mm IP Ingress Rating = IP66 Color = Gray Lid Color = Gray Flange = N Shield = N DIN1725, IEC60529 NEMA 4X / 6P UL508A, UL50, UL50E CE MIL-STD-810G (Mechanical Vibration / Shock Test) ASTM B117 IEC62262 IK60068-2-75. IP66 die-cast aluminum enclosure, powder coated. Waterproof enclosure series with coated gray finish. This enclosure is IP66 rated and specifically designed for harsh and demanding applications. The enclosure includes a lid and base, a stainless steel lid self-up screw, a neoprene O-ring gasket (unbroken), and four copper-plated screws for grounding. IP66 ingress protection with neoprene O-ring seal (unbroken) Seal stable temperature range: -40 to +100 °C DIN rail mounting points Lid and base are connected by stainless steel captive lid screws Wall thickness 3 mm
