Do not use as a main connector. RS Pro cable mounting connector (with backshell). RS Pro multi-pole audio/video connectors are manufactured for professional use.
The AXR/XLR compatible connectors are precision manufactured with zinc die-cast bodies and silver-plated solid brass turned contacts.
A major advantage of these connectors is the "squeeze" release clip, which allows the plug and socket to be quickly disconnected with a simple push-down mechanism.
Wiring and assembly are simple, and collet placement allows for effective cable gripping with cable diameters ranging from 2.8mm to 8.0mm.
All models are highly reliable and of excellent quality.
Features and Benefits. Solder tags feature holes for improved connection retention and reliability. Black or natural shell color. Male or female types available

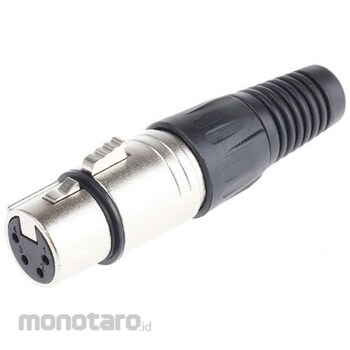

RS PRO RS PRO 4 Pole Female XLR Connector, Straight, Cable Mount, Silver Plated
#Grup produk P115244456
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationNumber of poles = 4
Male/Female = Female Mounting Type = Cable Mount Connection Direction = Straight Color = Black Surface Treatment: Contact = Silver Housing Material = Zinc Termination Method = Solder Current Rating = 10A
Rated voltage = 250 V ac
Contact Material = Brass Operating Temperature Min = -30°C
Operating temperature Max = +80°C
