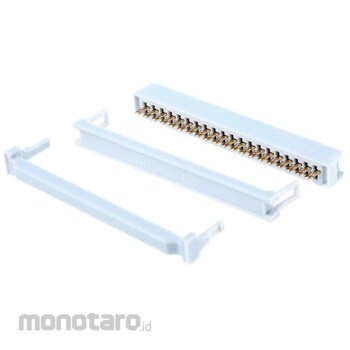

RS PRO Ribbon cable connector SC series RS Pro, female, 40 pins

Specification
Number of Contacts = 40 Gender = Female Pitch = 2.54mm Mounting Type = Cable Mount Body Orientation = Straight Terminal Method = IDC Rated Current = 1A Contact Plating = Gold Series = SC Minimum Operating Temperature = -45°C Maximum Operating Temperature = +105°C Contact Material = Copper Phosphate UL Recognized. RS 2.54 mm Universal PCB Box Headers and IDC Ribbon Cable Sockets. 2.54 mm pitch PCB mount box headers and IDC ribbon cable sockets compatible with connectors compliant with BS9525-F0023. These 2.54 mm universal board headers and IDC sockets have gray UL94V rated glass filled polyester housings and gold flash plated contacts and terminals. 2.54mm universal headers are fully shrouded and have long ejector latches. The 2.54mm universal IDC ribbon cable socket has an open design with no center bump, making it ideal for daisy chaining. The parts are fitted with strain relief for quick cable insertion.
