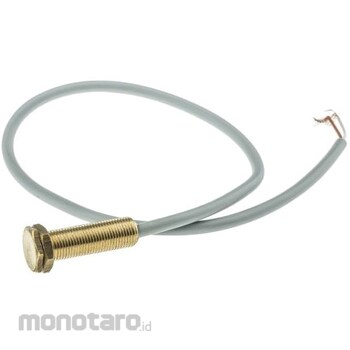

RS PRO Reed switch RS Pro
#Grup produk P115239232
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSwitch Shape = Cylindrical Switch Type = Magnetic Proximity Normal State Configuration = Normally Open Terminal Type = Screw (M8 x 0.75) Current Max = 500 mA Max AC Voltage = 200V Max DC Voltage = 200V Contact Position = Normally Open Contact Resistance = 200mΩ Total length = 28mm Length = 28mm Operating temperature Max = +85°C Magnet (part number: 361-7011 361-7011) and sensor (361-4933 361-4933) are available separately. Brass, M8. Reed switch and magnet mounted in separate homogenous housing Fully threaded for adjustment Cable length: 280 mm. Applications: Position or limit detection Linear actuators Door and window security
