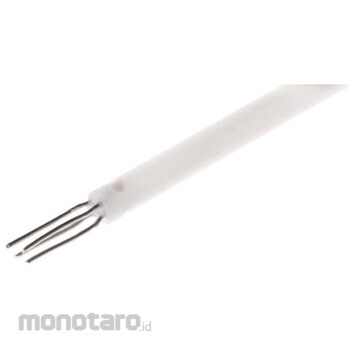

RS PRO PT100 sensor RS Pro PT100 Class B

Specification
Sensor Type = PT100 Probe Length = 15mm Probe Diameter = 1.5mm Minimum Sensing Temperature = -200°C Maximum Sensing Temperature = +650°C Terminal Type = PC Pin Probe Material = Ceramic Number of Wires = 2 Accuracy = Class B Response Time = 0.4 Sec Duplex PT100 Wound Detector. A two-element dual detector using two miniature spirally wound pure platinum strips placed in the axial bore of a high purity aluminum rod. This dual sensor with high stability can be connected to a measuring or control device using 2 wires for source and 2 wires for measurement, and long leads can reduce the impact on measurement accuracy . It is recommended to place this detector inside a protective metal tube.
