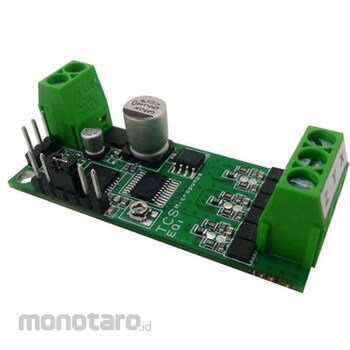

Brushless Micro Pump Controller. A compact and highly efficient motor controller for RS Pro series centrifugal micro pumps.
The EQi controller accepts input voltages up to 30 V and can control pump speed via an on-board potentiometer or an external 0-5 V signal.
If the voltage is above 12 V, the controller will keep the flow rate constant despite the increasing back pressure.
This results in a nearly horizontal flow-pressure curve.
Installation is simple, just wire the two input terminals, connect the three outputs to your micro pump, and set the jumper positions to perform on-board speed control or control the speed via an external 0-5V signal.
Applications. The EQi controller's compact size, easy installation and high efficiency make it suitable for a wide range of applications, including:
R&D Lab Equipment Prototyping Production Equipment
RS PRO Process Pump Controller RS PRO Brushless Micro Pump 6 → 28V Protection Class: IP20
#Grup produk P115237377
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationCompatibility Pump Type = Brushless Micro Pump Supply Voltage = 6 to 28 V
Connections: 2 screw terminals (input), 3 screw terminals (output)
IP class = protection class: IP20
Maximum outlet pressure = 10 bar
