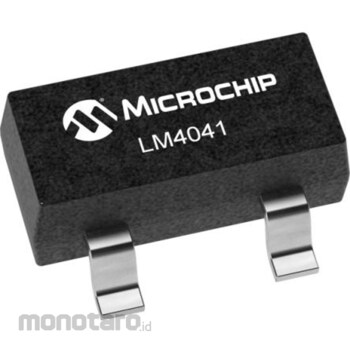

The Microchip LM4041CYM3-1.2-TR Precision Voltage Reference comes in a SOT-23 surface mount package.
The LM4041 is available with a fixed voltage of 1.225 V or an adjustable reverse breakdown voltage.
The minimum operating current ranges from LM4041-1.2 to 74 μA.
The maximum operating current of the LM4041 type is 12 mA.
The LM4041 features bandgap reference temperature drift curvature compensation and low dynamic impedance, resulting in stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
Small SOT-23 package No output capacitor required Tolerance to capacitive loads Adjustable reverse breakdown type
RS PRO Microchip Reference Voltage IC, Output: 1.2V Surface Mount, 3 Pins, LM4041CYM3-1.2-TR
#Grup produk P115233016
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationNominal voltage = 1.2V
Package Type = SOT-23
Rise accuracy = 0.5%
Mounting Type = Surface Mount Topology = Number of Shunt Pins = 3
