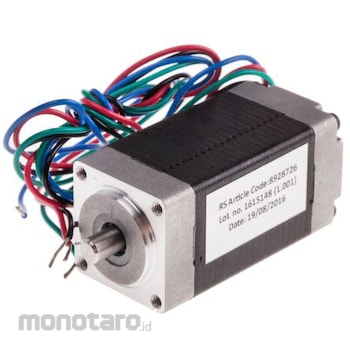

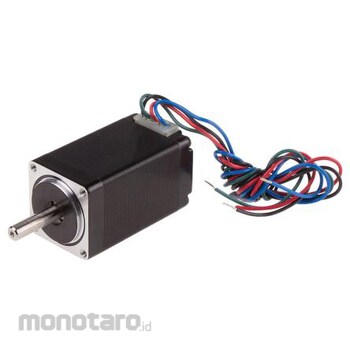

RS PRO Hybrid stepping motor RS PRO

Specification
Step angle: 1.8 ° * Holding torque: 65mNm * Number of wirings: 4 * Rated voltage: 2.64 V * Frame size: 39.2 x 39.2mm * Stepping motor type: hybrid, permanent magnet * Shaft diameter: 5mm * Allowable current value: 400 mA * Shaft length: 22mm * Depth: 44mm * Number of pole pairs: 1 * Resistance / Phase: 6.6Ω * Standard conformity: CE, RoHS compliant * High torque hybrid stepper motor. High torque hybrid stepper motor has position accuracy. High motion system. High output performance at low speeds, stall torque, and the ability to split steps into microsteps allow stepper motors to deliver direct and precise movement in small quantities. Features / Benefits. High Torque Stepper Motor Hybrid Technology Permanent Magnet. Product Application Information. Computer controlled stepper motors are a type of motion controlled positioning system. It is typically digitally controlled as part of an open loop system and used for holding and positioning applications. In the laser and optical fields, it is often used in precision positioning equipment such as linear actuators, linear stages, rotary stages, goniometers and mirror mounts. It is also used in packaging equipment and in positioning valve pilot stages in fluid control systems. Consumer products include floppy disks, flatbed scanners, printers, plotters, slot machines, image scanners, CD drives, intelligent lighting, camera lenses, CNC devices, and more recently 3D printers.
