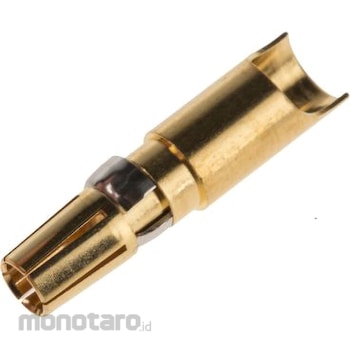

RS PRO DIN connector contact, DIN 41612 series, female RS Pro

Specification
Gender = Female Orientation = Straight Contact Material = Copper Alloy Contact Plating = Gold Combination = DIN41612 Type M Female Connector Series = DIN 41612 Mounting Type = Cable Mount Maximum Contact Resistance = 1mΩ Maximum Operating Temperature = +125°C Minimum Operating Temperature = - 55°C Rated current = 40A DIN 41612 M contacts. Power plug and socket contacts on both solder buckets, 90° termination, 40 A maximum rating Contact resistance <3 mΩ Gold-plated class 1 50 Ω coaxial contacts for crimp and Accepts solder terminated RG178B/U and RG174A/U (RG316) cables. 75 Ohm coaxial contacts accept RG179 cables with crimp or solder terminations. Coaxial contact resistance: <10 mΩ (center), <3 Ω (outer) Contact resistance of high voltage insert, outer conductor = <3 mΩ
