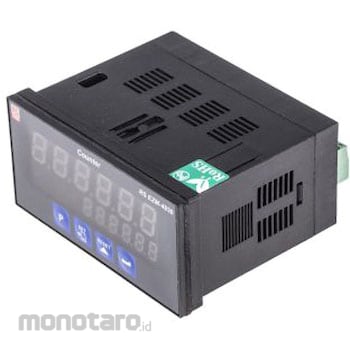

RS PRO Digital counter RS Pro LED Panel mounting RS Pro series

Specification
Supply Voltage = 230 V ac Count Mode = Seconds Display Type = LED Input Type = Transistor Connection Type = Screw Clamp Reset Method = Automatic, Manual Number of Digits = 6 Mounting Type = Panel Mount Output/Interface = Relay Count Direction = Bidirectional Digit Height = 8 mm, 13.2 mm Maximum Counting Frequency = 20kHz Display Range = 0 to 99.99 Cutout Width = 48mm GOST-R and CE Certified. 96 x 48 Programmable Counter - Single Set. Designed for a Wide Range of Applications single set programmable counter. The 96 x 48 mm installation dimensions make the counter versatile both in terms of installation and function. Features and Benefits 6-digit LED display Membrane buttons for set, reset, direction and input 24 V and 230 V options available NEMA 4X protection (IP65 front, IP20 rear) SPST output relay rated 5 A @ 250 V (resistive load) ) Supports NPN/PNP operation Inputs to sensors and encoders for capacitance and proximity INC, DEC, INC/INC, INC/DEC, up/down, x1/x2/x4 count, with phase shift characteristics Manual and automatic reset option. Suitable for: Machining of glass, marble, plastic, sheet iron, textiles Filling systems Quality control roller equipment Packaging machines Measuring automation
