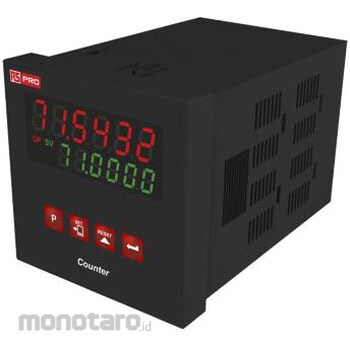

RS PRO Digital counter RS Pro LED Panel mounting RS Pro series

Specification
Supply Voltage = 24 V Count Mode = Seconds Display Type = LED Input Type = Transistor Connection Type = Flying Lead Reset Method = Automatic, Manual Number of Digits = 6 Mounting Type = Panel Mount Output/Interface = Relay Count Direction = Bidirectional Digits Height = 8 mm, 10.8 mm Maximum Counting Frequency = 20kHz Display Range = 0 -> 99.99 Maximum Operating Temperature = +50°C GOST-R and CE Certified. 72 x 72 Programmable Counter - Single Set. Designed single set programmable counter. With a mounting of 72 x 72 mm, it is a very versatile product both in terms of installation and functionality. Key Features: 6-digit LED display Membrane buttons for set, reset, direction and input 24 V and 230 V options available NEMA 4X protection (IP65 front, IP20 rear) SPST output relay rated 5 A @ 250 V (resistive load ) Supports NPN/PNP operation Capacitive and proximity sensor and encoder inputs Manual and automatic reset options. Suitable for applications in areas such as: glass, marble, plastic, sheet metal, textile machining Filling system Quality control roller device Packaging machine Automated measurement
