For mating DIN 41612 receptacles, see typical part number: 251-930 251-930.
C Series Standard Male DIN 41612 Connectors. This range of DIN 41612 through-hole pin headers is available in a variety of arrangement configurations.
The pins are gold plated on the contact area and tin plated on the PCB tail.

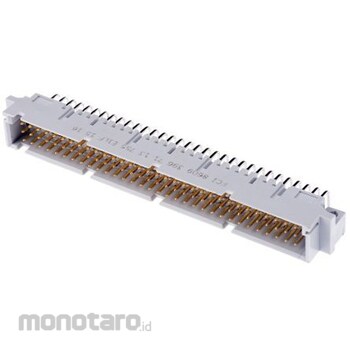

RS PRO Amphenol ICC DIN41612 Connector, Male, 96-way, 3-row, 2.54mm pitch
#Grup produk P115223392
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationNumber of poles = 96
Male/Female = Male Number of Rows = 3
Connection Direction = Right Angle Termination Method = Solder Loading Row = a/b/c
Type = C
Pitch = 2.54mm
Surface Treatment: Contact = Gold over Nickel Class Rating = C2
Rated current = 2A
Contact material = Copper alloy Maximum contact resistance = 20mΩ
Operating temperature Min = -55°C
