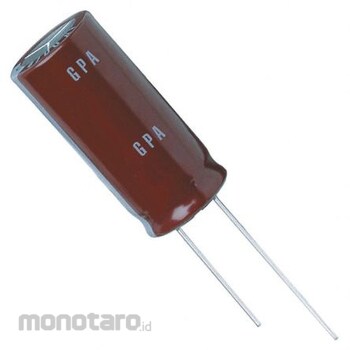

Nippon Chemi Con Nippon Chemi-Con Electrolytic Capacitor 820μF
#Grup produk P115158593
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCapacitance: 820μF, Mounting type: Through hole, Dimension: 16 (Dia.) x 30mm, Length: 30mm, Operating temperature Min: -40°C, Lead pitch: 7.5mm, Lead diameter: 0.8mm, Life: 5000h , Diameter: 16mm, Equivalent series resistance: 1.3Ω, Ripple current: 2330mArms, Leakage current: 4 μA, Tolerance: ±20%, Tolerance (minus): -20%, Technology: Electrolytic, GPA series miniature aluminum electrolytic capacitor . GPA series miniature aluminum electrolytic capacitors are miniaturized low impedance and high ripple current versions of GXE. Guaranteed short circuit time at 150 °C and long life at 125 °C ESR of specifications is achieved after durability test For automotive applications with high ripple current (direct fuel injection, electric power steering, etc.)
