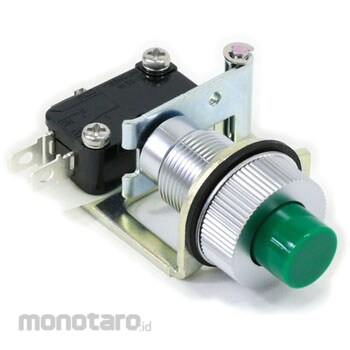

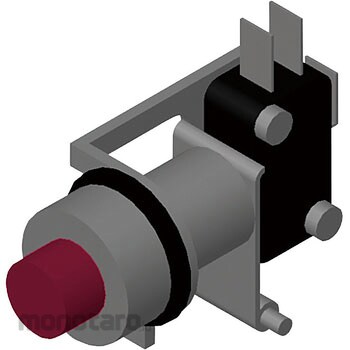

OMRON Pushbutton switch (round body Φ16.5) VAP
#Grup produk P115114128
Spesifikasi
| Allowable Operation Frequency | Mechanical: Up to 60 times / min, Electrical: 20 times / min |
|---|---|
| Ambient Humidity to Use | 35~85%RH |
| Contact Type | Double throw type (c contact) |
| Electric Shock Protection Class | Class II |
| Electrical Durability | 100,000 times or more |
| Inrush Current (A) | Normally closed circuit: Up to 36, normally open circuit: Up to 36 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 1,000,000 times or more |
| Operation Mechanism | Round type Protruding type |
| PTI (Proof Tracking Index) | 175 |
| Pollution Degree (Environment to Use) | 3(IEC947-5-1) |
| Protection Class | IP00 |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 200m / s <sup>2</sup> |
| Storage Temperature (°C) | -25 to 80 (no freezing or condensation) |
| Type | Push button switch |
| Type of Illumination | Non-illuminated |
| Type of Operation | Momentary |
| Type of Terminal | Solder terminal / tab terminal |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
| Withstand Voltage | Between homopolar terminals: 1000 VAC 50/60 Hz for 1 min / between charged metal parts and ground, Between each terminal and non-charged metal parts: 1500 VAC 50/60 Hz for 1 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Built-in V-micro switch, compatible with general industrial machines By using a rubber cap, it can be used even in places where water and dust are scattered. (Protection of the front of the panel)
