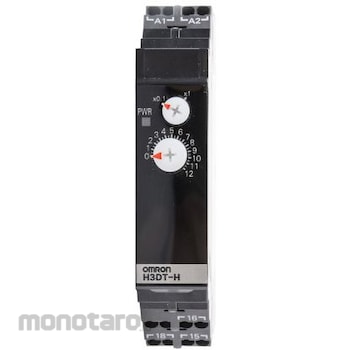

OMRON Power off delay timer H3DT-H
#Grup produk P115112227
Spesifikasi
| Contact Configuration | SPDT |
|---|---|
| Depth (mm) | 100 |
| Maximum Current (A) | 5 |
| Maximum Voltage (V) | AC250,DC30 |
| Number of Contacts | 2 |
| Operation Method | Power off delay |
| Power Supply | Outside |
| Power Supply Voltage (V) | AC100~120 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | H3DT-H |
| Terminal Type | Screw |
| Time (s) | 1~120 |
| Timer Function | Single |
| Timing Range | Second |
| Type of Sign | DIN rail |
| Width (mm) | 90 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationH3DT-H off-delay timer. Solid-state timer delay relay with push-in plus technology is intended for in-panel applications. The slim design makes it ideal for space-saving applications and reduces work on the control panel. This timer reduces power consumption by up to 60% and reduces heat generation in the control panel. .Off-delay operation mode Slim design, 17.5mm width, 2 types of time range setting 0.1 to 12 seconds (S series), 1.0 to 120 seconds (L series) Relay output Wide supply voltage range (depending on model) DIN rail mounting
