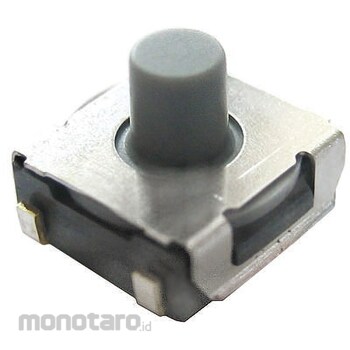

OMRON Middle Stroke / Tactile Switch B3SL
#Grup produk P115105582
Spesifikasi
| Bouncing (ms) | 5 or less |
|---|---|
| Color | Yellow green (plunger) |
| Contact Configuration | 1a (normally open contact) |
| Contact Material | Silver plating |
| Durability | 100,000 times or more |
| Height (mm) | 3.4 |
| Insulation Resistance (MΩ) | 100 or more (with DC250V insulation resistance meter) |
| Operating Force OF (N) | 1.96 |
| Operating Humidity Range (%RH) | 35-85 (at 5-35°C) |
| Operating Temperature Range | -25 to 90°C 60%RH or less (no freezing or condensation) |
| Protection Class | IEC IP67 |
| Rating | DC3~12V 1~50mA |
| Shock Resistance (m/s²) | Up to 1000 |
| Type | embossed taping |
| Vibration Resistance (Hz) | 10~55/double amplitude 1.5mm |
| Washing | Impossible |
| Withstand Voltage | AC250V 50/60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Specification*Minimum applicable load: DC1V 10μA (reference value) *Operation load capacity (N): Max. 30
