Achieves a shorter body length of 23 mm.
Realizes 5 colors (red, yellow, green, white, blue) with LED. (Use green LED for blue)
Achieves uniform surface illumination with chip LEDs.
One-touch mounting from the front to the panel.

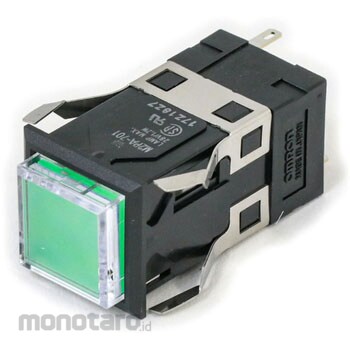

OMRON Indicator Light Set (Large Square Body) M2P
#Grup produk P115100286
Spesifikasi
| Allowable Operation Frequency | Mechanical: Up to 120 times / min, Electrical: 30 times / min |
|---|---|
| Ambient Humidity to Use | 35~85%RH |
| Electric Shock Protection Class | Class II |
| Electrical Durability | 100,000 times or more |
| Inrush Current (A) | (Normally closed) silver contact type: max. 10, (normally open) silver contact type: max. 10 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| PTI (Proof Tracking Index) | 175 |
| Protection Class | IP40 |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 200m / s <sup>2</sup> (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to 65 (no freezing or condensation) |
| Type | Colored light emission type |
| Type of Terminal | Tab (#110)/soldered terminal |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
