Body length 40 mm, square body series.
A small, sharp and soft operation feel.
Installation on the panel is one-touch from the front, and lamp replacement is easy without tools.

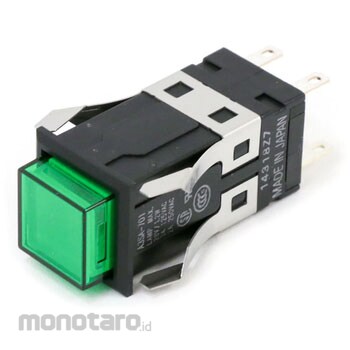

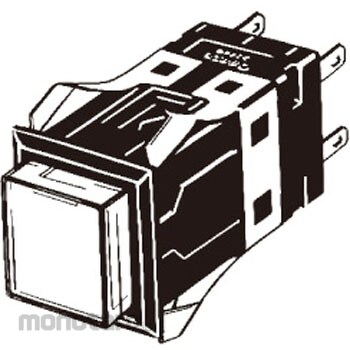

OMRON Illuminated pushbutton switch (square) (LED) (square body) A3S
#Grup produk P115099908
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Button Shape | Square |
| Electric Shock Protection Class | Class II |
| Electrical Durability | 100,000 operations or more (rated load) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | Built-in one LED |
| Mass (g) | About 10 |
| Minimum Applicable Load | DC5V 1mA |
| PTI (Proof Tracking Index) | 175 |
| Protection Class | IP00 |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 200m / s <sup>2</sup> (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Terminal Shape | Tab terminal |
| Type | Colored light emission type (no division) |
| Type of Illumination | Illumination (LED) |
| Type of Terminal | Tab terminal (#110) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
