Large square body series.
Good operation feel.
High brightness and uniform surface illumination.

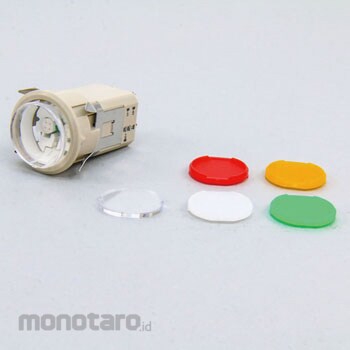

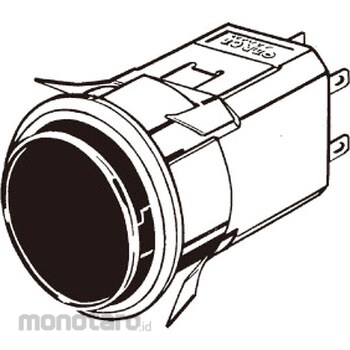

OMRON Illuminated pushbutton switch (round) (LED) (square body) A3P
#Grup produk P115099865
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Button Shape | Round |
| Case Color | Light gray |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | 2 LED lamps |
| Mass (g) | About 30 |
| Protection Class | IP40 |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 200m / s <sup>2</sup> (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Terminal Shape | Solder terminal / tab terminal |
| Type | Colored light emission type (no division) |
| Type of Illumination | Illumination (LED lamp) |
| Type of Terminal | Tab (#110)/soldered terminal |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationFor general load
