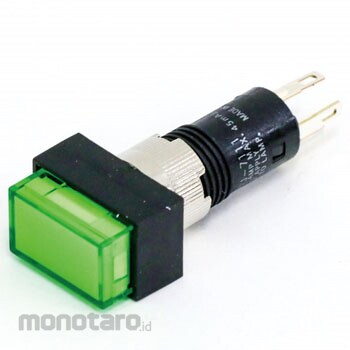

OMRON Illuminated pushbutton switch (round body Φ8) (rectangle) A3DJ
#Grup produk P115099801
Spesifikasi
| Ambient Humidity to Use | 35~85%RH |
|---|---|
| Button Shape | Long angle |
| Contact Configuration | 1a |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mass (g) | About 3 |
| Minimum Applicable Load | DC5V 1mA |
| Protection Class | IP40 |
| Shock Resistance (Destruction) | Up to 500m / s <sup>2</sup> |
| Shock Resistance (Malfunction) | Up to 150m / s <sup>2</sup> (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Terminal Shape | Solder terminal |
| Type | Small pushbutton switch |
| Type of Illumination | Illumination (Built-in LED lamp) |
| Type of Terminal | Solder terminal |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
| Withstand Voltage | Between homopolar terminals, between LED terminals (without LED lamp mounted): AC1000V 50 / 60Hz 1min / between different polarity terminals, between each terminal and ground: AC2000V 50 / 60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationFor micro load (DC30V 0.1A)
