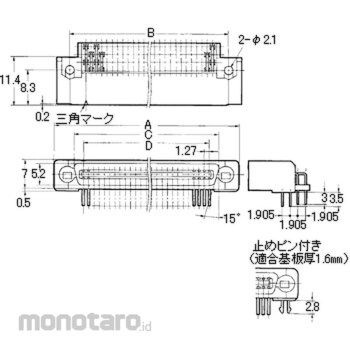

1.27mm pitch connector for high-density mounting and miniaturization of high-density electronic devices High-density mounting is possible due to the contact pitch 1.27mm 2-row arrangement.
The connection with the board is a 4-row staggered arrangement (1.27 mm x 1.905 mm).
By adopting a leaf contact structure, it is strong against scratches and realizes smooth insertion and removal.
Achieves a mating length of 3.1 mm, greatly improving the margin.
Maintains stable contact force by devising the press-fitting part.
Furthermore, the adoption of gold / palladium plated contacts further improves contact reliability.
Standardized with all-pole stop pins to prevent floating during soldering.
Can also be screwed to the board.
UL standard certified product (File No. E103202).
Cannot be mated with the XH3 / XH4 half-pitch connector. 1.27mm pitch connector for density mounting and miniaturization Contact pitch 1.27mm High density mounting is possible due to the 2-row arrangement.
The connection with the board is a 4-row staggered arrangement (1.27 mm x 1.905 mm).
By adopting a leaf contact structure, it is strong against scratches and realizes smooth insertion and removal.
Achieves a mating length of 3.1 mm, greatly improving the margin.
Maintains stable contact force by devising the press-fitting part. Furthermore, the adoption of gold / palladium plated contacts further improves contact reliability.
Standardized with all-pole stop pins to prevent floating during soldering.
Can also be screwed to the board.
UL standard certified product (File No. E103202).
Cannot be mated with the XH3 / XH4 half-pitch connector.
OMRON Half-pitch connector (for board-to-board connection) XH2
#Grup produk P115097362
Spesifikasi
| Dimension A (mm) | 38.1 |
|---|---|
| Dimension B (mm) | 31.75 |
| Dimension C (mm) | 28.5 |
| Dimension D (mm) | 24.13 |
| Insertion / Removal Durability (Times) | 400 |
| Insulation Resistance (MΩ) | 10 <sup>3</sup> or more (at 500 VDC) |
| Number of Poles | 40 |
| Rated Current (A) | 0.5 |
| Rated Voltage (V) | AC125 |
| Standard | RoHS directive, UL standard (File No.E103202) |
| Total Insertion Force | Number of poles x 0.78 N or less |
| Total Removal Force (N) | Number of poles x 0.10 or more |
| Type | Plug |
| Withstand Voltage (V/minute) | AC650, 1 (leakage current 1mA or less) |
