Spesifikasi
| Battery Capacity (AH) | 5 |
|---|---|
| Dimensions (H x W x L) (mm) | 226x80x264 |
| Feature | Nail remaining amount notification: Yes |
| Included Accessories | Battery pack (JP-L91850A) x 1, bit (+No.2 x 65) x 1, hook, carrying case |
| Mass (kg) | 2.1 (when JP-L91850A is installed) |
| Specification | Equipped with anti-empty shot mechanism/emphasis on stamina |
| Suitable For | [Compatible battery packs] Max lithium-ion battery pack/18V: JP-L91850A, JP-L91825A, 14.4V: JP-L91450A, JP-L91440A, JP-L91430A, JP-L914, JP-L91415A, JP-L91415 |
| Type | ZT92661 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description

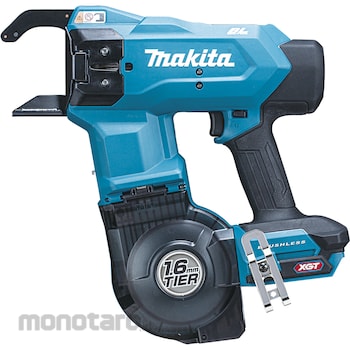

Rechargeable rebar tying machine
40Vmax specification 1.6mm wire (annealed wire) only ◆ Achieves "high binding strength with thick wire" and "low wire consumption" Designed exclusively for thick 1.6mm wire (annealed wire), it can powerfully bind a wide range of rebar combinations.
◆The "wire retraction mechanism" provides strong bonding power by retracting the sent-out wire, thereby firmly adhering the rebars to each other.
◆Equipped with two high-power brushless motors The wire twisting section and wire feed section are equipped with high-power, highly durable, and maintenance-free high-power brushless motors.
◆ Binding strength is approximately 3 times stronger*Compared to the manufacturer's previous model. The previous model is set to 3 turns.
◆Reduced wire consumption allows for efficient bundling
The wire length consumed per bundling is approximately 1/6* of that of the manufacturer's previous model. This allows for efficient bundling without wasting wire. *When bundling D10 x D10.
◆Easy reel loading The opening and closing action of the magazine cover is linked to the wire feed mechanism.
When you open the cover, a gap is created for the wire to pass through, making it easy to load.
◆Slimmed guide arm The slim tip shape is 5.6mm wide, 8.4mm slimmer than the manufacturer's previous model, making it easy to tie together even complex rebar.
◆Waterproof protection grade IPX6
*Products with IP markings are designed to be resistant to the effects of dust and water, but this does not guarantee that they will not malfunction. If a battery is installed, the product will be protected by the protection rating of the device itself.
◆Waterproof and dustproof "APT"
*Note: This product is designed to minimize the effects of water and dust, but this does not guarantee that it will not malfunction due to water or dust.
◆Compatible with a wide range of rebar combinations
2-strand, 3-strand, and 4-strand tying Improves efficiency of bundling work at various sites, and is recommended for everything from large-scale earthen floor pouring sites to precast concrete manufacturing sites.
◆ Binding strength adjustment button (6 levels) ◆ Extension handle set (sold separately)
An extension handle set is available separately, which allows you to easily perform binding work even while standing.
The handle can be adjusted to a position that is easy to work in.
Part name: Extension handle set Part number: A-79821
40Vmax specification 1.6mm wire (annealed wire) only ◆ Achieves "high binding strength with thick wire" and "low wire consumption" Designed exclusively for thick 1.6mm wire (annealed wire), it can powerfully bind a wide range of rebar combinations.
◆The "wire retraction mechanism" provides strong bonding power by retracting the sent-out wire, thereby firmly adhering the rebars to each other.
◆Equipped with two high-power brushless motors The wire twisting section and wire feed section are equipped with high-power, highly durable, and maintenance-free high-power brushless motors.
◆ Binding strength is approximately 3 times stronger*Compared to the manufacturer's previous model. The previous model is set to 3 turns.
◆Reduced wire consumption allows for efficient bundling
The wire length consumed per bundling is approximately 1/6* of that of the manufacturer's previous model. This allows for efficient bundling without wasting wire. *When bundling D10 x D10.
◆Easy reel loading The opening and closing action of the magazine cover is linked to the wire feed mechanism.
When you open the cover, a gap is created for the wire to pass through, making it easy to load.
◆Slimmed guide arm The slim tip shape is 5.6mm wide, 8.4mm slimmer than the manufacturer's previous model, making it easy to tie together even complex rebar.
◆Waterproof protection grade IPX6
*Products with IP markings are designed to be resistant to the effects of dust and water, but this does not guarantee that they will not malfunction. If a battery is installed, the product will be protected by the protection rating of the device itself.
◆Waterproof and dustproof "APT"
*Note: This product is designed to minimize the effects of water and dust, but this does not guarantee that it will not malfunction due to water or dust.
◆Compatible with a wide range of rebar combinations
2-strand, 3-strand, and 4-strand tying Improves efficiency of bundling work at various sites, and is recommended for everything from large-scale earthen floor pouring sites to precast concrete manufacturing sites.
◆ Binding strength adjustment button (6 levels) ◆ Extension handle set (sold separately)
An extension handle set is available separately, which allows you to easily perform binding work even while standing.
The handle can be adjusted to a position that is easy to work in.
Part name: Extension handle set Part number: A-79821
Warning
Rechargeable rebar tying machine40Vmax specification 1.6mm wire (annealed wire) only ◆ Achieves "high binding strength with thick wire" and "low wire consumption" Designed exclusively for thick 1.6mm wire (annealed wire), it can powerfully bind a wide range of rebar combinations.
◆The "wire retraction mechanism" provides strong bonding power by retracting the sent-out wire, thereby firmly adhering the rebars to each other.
◆Equipped with two high-power brushless motors The wire twisting section and wire feed section are equipped with high-power, highly durable, and maintenance-free high-power brushless motors.
◆ Binding strength is approximately 3 times stronger*Compared to the manufacturer's previous model. The previous model is set to 3 turns.
◆Reduced wire consumption allows for efficient bundling
The wire length consumed per bundling is approximately 1/6* of that of the manufacturer's previous model. This allows for efficient bundling without wasting wire. *When bundling D10 x D10.
◆Easy reel loading The opening and closing action of the magazine cover is linked to the wire feed mechanism.
When you open the cover, a gap is created for the wire to pass through, making it easy to load.
◆Slimmed guide arm The slim tip shape is 5.6mm wide, 8.4mm slimmer than the manufacturer's previous model, making it easy to tie together even complex rebar.
◆Waterproof protection grade IPX6
*Products with IP markings are designed to be resistant to the effects of dust and water, but this does not guarantee that they will not malfunction. If a battery is installed, the product will be protected by the protection rating of the device itself.
◆Waterproof and dustproof "APT"
*Note: This product is designed to minimize the effects of water and dust, but this does not guarantee that it will not malfunction due to water or dust.
◆Compatible with a wide range of rebar combinations
2-strand, 3-strand, and 4-strand tying Improves efficiency of bundling work at various sites, and is recommended for everything from large-scale earthen floor pouring sites to precast concrete manufacturing sites.
◆ Binding strength adjustment button (6 levels) ◆ Extension handle set (sold separately)
An extension handle set is available separately, which allows you to easily perform binding work even while standing.
The handle can be adjusted to a position that is easy to work in.
Part name: Extension handle set Part number: A-79821
Feature
Rechargeable rebar tying machine40Vmax specification 1.6mm wire (annealed wire) only ◆ Achieves "high binding strength with thick wire" and "low wire consumption" Designed exclusively for thick 1.6mm wire (annealed wire), it can powerfully bind a wide range of rebar combinations.
◆The "wire retraction mechanism" provides strong bonding power by retracting the sent-out wire, thereby firmly adhering the rebars to each other.
◆Equipped with two high-power brushless motors The wire twisting section and wire feed section are equipped with high-power, highly durable, and maintenance-free high-power brushless motors.
◆ Binding strength is approximately 3 times stronger*Compared to the manufacturer's previous model. The previous model is set to 3 turns.
◆Reduced wire consumption allows for efficient bundling
The wire length consumed per bundling is approximately 1/6* of that of the manufacturer's previous model. This allows for efficient bundling without wasting wire. *When bundling D10 x D10.
◆Easy reel loading The opening and closing action of the magazine cover is linked to the wire feed mechanism.
When you open the cover, a gap is created for the wire to pass through, making it easy to load.
◆Slimmed guide arm The slim tip shape is 5.6mm wide, 8.4mm slimmer than the manufacturer's previous model, making it easy to tie together even complex rebar.
◆Waterproof protection grade IPX6
*Products with IP markings are designed to be resistant to the effects of dust and water, but this does not guarantee that they will not malfunction. If a battery is installed, the product will be protected by the protection rating of the device itself.
◆Waterproof and dustproof "APT"
*Note: This product is designed to minimize the effects of water and dust, but this does not guarantee that it will not malfunction due to water or dust.
◆Compatible with a wide range of rebar combinations
2-strand, 3-strand, and 4-strand tying Improves efficiency of bundling work at various sites, and is recommended for everything from large-scale earthen floor pouring sites to precast concrete manufacturing sites.
◆ Binding strength adjustment button (6 levels) ◆ Extension handle set (sold separately)
An extension handle set is available separately, which allows you to easily perform binding work even while standing.
The handle can be adjusted to a position that is easy to work in.
Part name: Extension handle set Part number: A-79821
