Alternative chipbreaker for light cutting of carbon steel and alloy steel. Excellent chip control on the low feed side within the light cutting range. The wave-shaped cutting edge makes it ideal for profiling and pulling. Recommended for work material hardness 200-300HB.
For light cutting

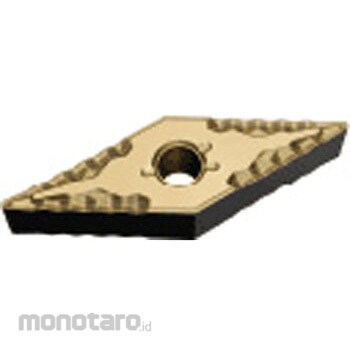

*The product image is a representative image.

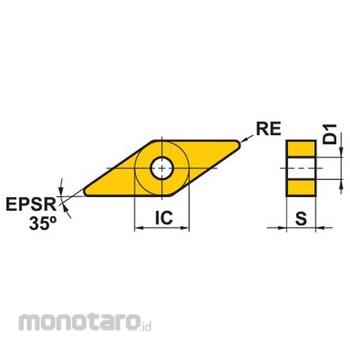

Mitsubishi Materials Turning insert VNMG-SA
#Grup produk P114656432
Spesifikasi
| Chip breaker | Yes |
|---|---|
| Clearance Angle (°) | 0 (Zero) |
| Corner Height Tolerance (mm) | ±0.16 |
| Grade | NX2525 |
| Inscribed circle IC(mm) | 9.525 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Without permission |
| Shape | Diamond 35 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05 |
| Type | Negative |
| With Or Without Hole | Yes |
| With or Without Breaker | Both sides |
