Alternative chipbreaker for medium cutting of carbon steel and alloy steel. The flat land flute shape provides high cutting edge strength. Highly versatile all-round breaker shape.
For medium cutting
*The product image is a representative image.

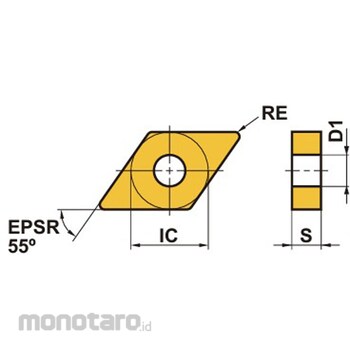

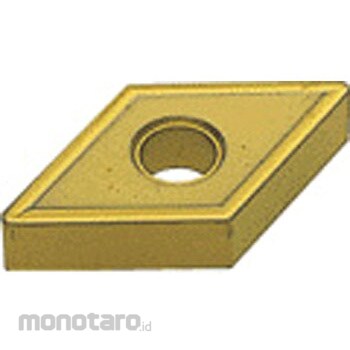

Mitsubishi Materials Turning insert DNMG-Standard
#Grup produk P114655734
Spesifikasi
| Chip breaker | Yes |
|---|---|
| Clearance Angle (°) | 0 (Zero) |
| Corner Height Tolerance (mm) | ±0.11 |
| Corner Radius (mm) | 0.8 |
| Grade | MH515 |
| Inscribed circle IC(mm) | 9.525 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Without permission |
| Shape | Diamond 55 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05 |
| Type | Negative |
| With Or Without Hole | Yes |
| With or Without Breaker | Both sides |
