First recommended chipbreaker for light cutting of cast iron. Narrow positive land cutting edge provides good surface finish with low cutting resistance.
For light cutting

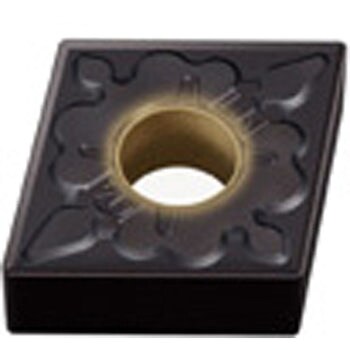

Mitsubishi Materials Turning Insert CNMG-LK
#Grup produk P114655275

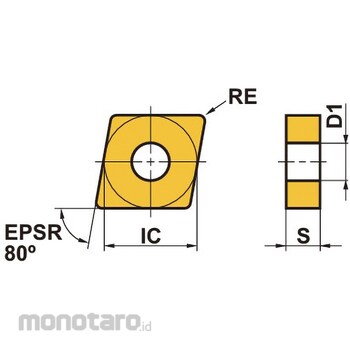

Spesifikasi
| Chip breaker | Both sides |
|---|---|
| Clearance Angle (°) | 0 (Zero) |
| Corner Height Tolerance (mm) | ±0.13 |
| Cutting Blade Length (mm) | 12.9 |
| Inscribed circle IC(mm) | 12.7 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Without permission |
| Shape | Diamond shape 80 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.08 |
| Type | Negative |
| With Or Without Hole | Yes |
