Finishing area (ap ≤ 0.5 mm)
* If you order by cash on delivery, it may be shipped the next day or later.

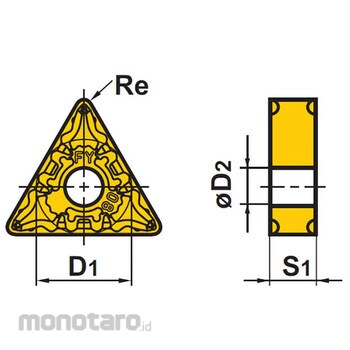

Mitsubishi Materials Tip TNMG-FY
#Grup produk P114653718
Sebelum PPN:
Rp1.199.900 - Rp1.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | M |
|---|---|
| Chip breaker | FY type |
| Clearance Angle (°) | 0 (Zero) |
| Corner Height Tolerance (mm) | ±0.08~±0.18 |
| Corner Radius (mm) | 0.8 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | Finish cutting |
| Dimension D1 (mm) | 9.525 |
| Dimension D2 (mm) | 3.81 |
| Dimension S1 (mm) | 4.76 |
| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05~±0.13 |
| Type | Negative |
| With Or Without Hole | Yes |
