(Material)
A cermet grade for continuous to intermittent cutting with improved wear resistance and fracture resistance due to the ultrafine grain structure.

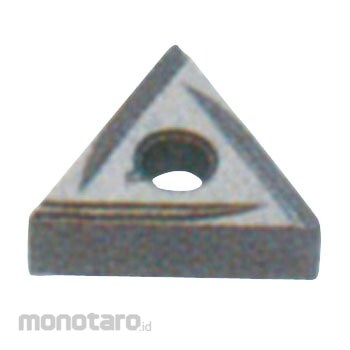

Mitsubishi Materials Chip TNGG-K
#Grup produk P114619088
Spesifikasi
| Abrasive Materials | Cermet: Steel, stainless steel, cast iron |
|---|---|
| Accuracy | G |
| Chip breaker | L-K |
| Clearance Angle (°) | 0 (Zero) |
| Corner Height Tolerance (mm) | ±0.025 |
| Corner Radius (mm) | 0.2 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | Light cutting |
| Dimension D1 (mm) | 9.525 |
| Dimension D2 (mm) | 3.81 |
| Dimension Re (mm) | 0.2 |
| Dimension S1 (mm) | 4.76 |
| Material | NX2525 |
| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| With Or Without Hole | Yes |
