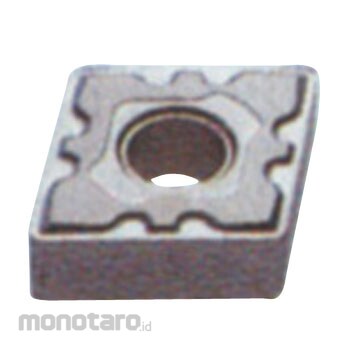

Mitsubishi Materials Chip CNMG-FS
#Grup produk P114610209
Spesifikasi
| Abrasive Materials | Cermet: Steel, stainless steel, cast iron |
|---|---|
| Accuracy | M |
| Chip breaker | FS |
| Clearance Angle (°) | 0 (Zero) |
| Corner Height Tolerance (mm) | ±0.08~±0.18 |
| Corner Radius (mm) | 0.8 |
| Cutting Blade Length (mm) | 12.9 |
| Cutting area | Finish cutting |
| Dimension D1 (mm) | 12.7 |
| Dimension D2 (mm) | 5.16 |
| Dimension Re (mm) | 0.8 |
| Dimension S1 (mm) | 4.76 |
| Material | NX2525 |
| Shape | Diamond shape 80 ° |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05~±0.13 |
| Type | Negative |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
* If you order by cash on delivery, it may be shipped the next day or later.
