Ideal for threading blind holes in aluminum and its alloys, and non-ferrous metals such as die casting.
Rolled aluminum material (AL): ◎, Aluminum alloy casting (AC / ADC): ◎, Magnesium alloy casting (MC): ○, Thermoplastic plastic: ○
* The accuracy column is the recommended tap accuracy for class 2 female threads. * The tap system does not guarantee the accuracy of female threads. * Please refer to the manufacturer's catalog for cutting fluids and pastes.

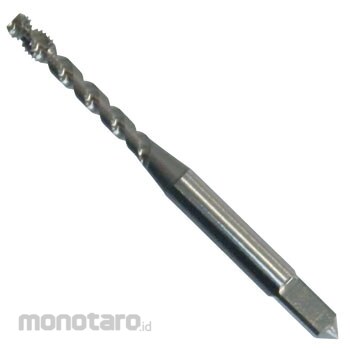

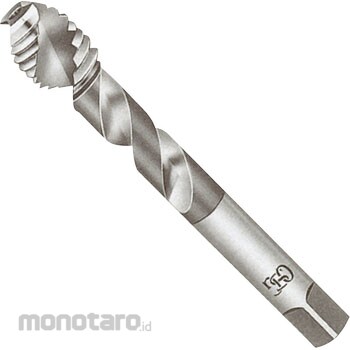

OSG Spiral Tap for Aluminum EX-AL-SFT
#Grup produk P114439181
Kondisi Barang:
Spesifikasi
| Accuracy | OH2 |
|---|---|
| Accuracy notation | STD |
| Cell Spacing (mm) | 1 |
| Chamfer | 2.5P |
| Helix Angle (°) | 51 |
| Length (mm) | Square: 7 |
| Mass (g) | 12 |
| Material | High vanadium high speed steel_HSS-E |
| Nominal Size | M6x1 |
| Number of Flutes | 2 |
| Overall Length (mm) | 62 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Screw Length (mm) | 8 |
| Shank Diameter (mm) | 6 |
| Surface Treatment | Non-coated |
| Type Of Thread | M |
| Width (mm) | Square part DRVS: 4.5 |
