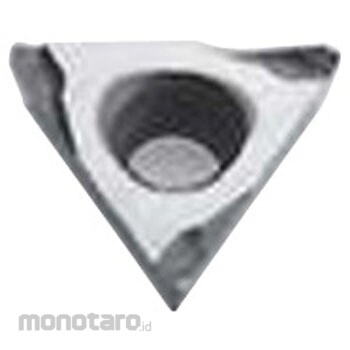

Sumitomo Electric Hard Metal Turning tip TPGT-FW
#Grup produk P114350732
Spesifikasi
| Abrasive Materials | Steel |
|---|---|
| Clearance Angle (°) | 11 |
| Corner Height Tolerance (mm) | ±0.025 |
| Corner Radius (mm) | 0.4 |
| Cutting Blade Length (mm) | 8.2 |
| Cutting area | Finish cutting |
| Grade | T2500Z |
| Inscribed circle IC(mm) | 4.76 |
| Material | Coated cermet |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Left hand |

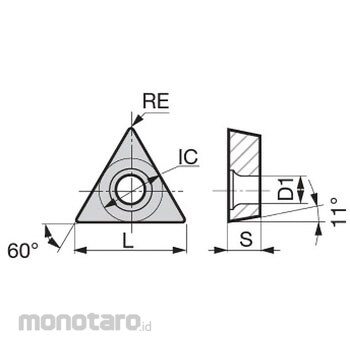

| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical + single-sided chamfer (40° to 60°) |
| Thickness (mm) | 2.38 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| Type | positive |
| With Or Without Hole | Yes |
| With or Without Breaker | One side |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Wide dimple breaker with good sharpness.
