Breaks chips under minute cutting conditions where chip control is difficult.
A rich lineup that can handle external diameter, internal diameter machining, and various work materials.
*If the corner radius RE is displayed as "<", it has a negative tolerance.

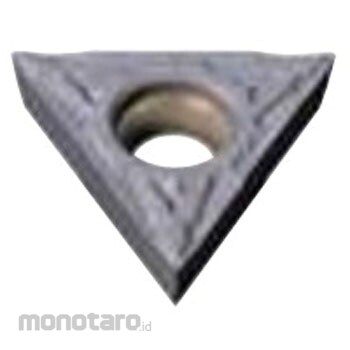

Sumitomo Electric Hard Metal Turning tip TPGT-FF
#Grup produk P114350714
Spesifikasi
| Clearance Angle (°) | 11 |
|---|---|
| Corner Height Tolerance (mm) | ±0.025 |
| Cutting Blade Length (mm) | 8.2 |
| Cutting area | micro cutting |
| Material | PVD coating |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Without permission |

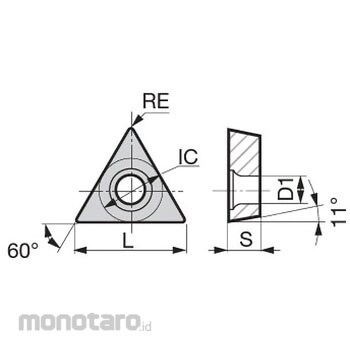

| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical + single-sided chamfer (40° to 60°) |
| Thickness (mm) | 2.38 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| Type | positive |
| With Or Without Hole | Yes |
| With or Without Breaker | One side |
