The curved chipbreaker demonstrates its power in minute cutting.
*The product image is a representative image.

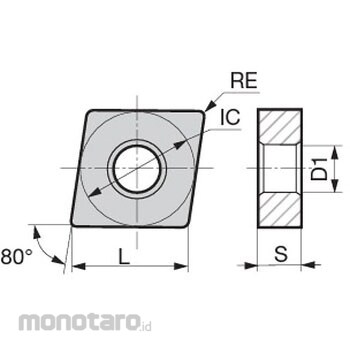

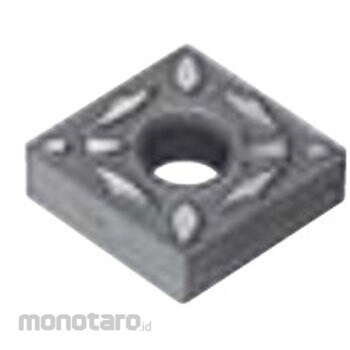

Sumitomo Electric Hard Metal Turning insert CNMG-FA
#Grup produk P114348250
Spesifikasi
| Abrasive Materials | Steel |
|---|---|
| Accuracy Grade | M |
| Chip breaker | FA |
| Clearance Angle (°) | 0 |
| Corner Height Tolerance (mm) | ±0.13 |
| Cutting Blade Length (mm) | 12.9 |
| Cutting area | micro cutting |
| Grade | T2500Z |
| Inscribed Circle (mm) | (IC)12.7 |
| Material | Coated cermet |
| Right or Left Hand | Without permission |
| Shape | Diamond shape 80 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.08 |
| Type | Negative |
| With Or Without Hole | Yes |
