When combined with the coated material AC503U, medium-rough machining of hardened steel is possible.
The wide breaker (rake angle 4°) with a 4° angle and sharp edge suppresses heat generation, enabling heavy machining of hardened steel (ap = 1 to 3 mm).
Smooth chip removal is possible.

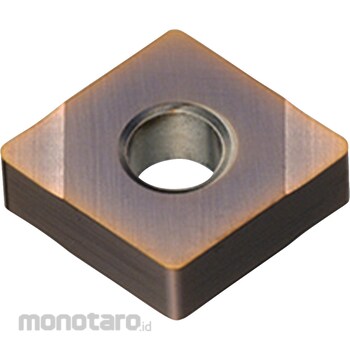

*This is a series image of 80 degree diamond negative chips.
Sumitomo Electric Hard Metal Throwaway Tip
#Grup produk P114347659
Spesifikasi
| Chip breaker | GH |
|---|---|
| Clearance Angle (°) | 0[N] |
| Coating | AC503U |
| Corner Height Tolerance (mm) | ±0.025 |
| Corner Radius (mm) | 0.8[08] |
| Cutting Blade (mm) | 12 |
| Cutting Blade Length (mm) | 12.9 |
| Cutting area | Light cutting of hardened steel |
| Insert Thickness (mm) | 4.76[04] |
| Insert Used | Diamond [C] |
| Right or Left Hand | None [N] |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| Type | Negative |
| With Or Without Hole | Yes (cylindrical bore) |
| With or Without Breaker | Both sides |
