Sumiboron, a sintered CBN tool, is primarily used for cutting iron-based metals due to its low reactivity with iron-group elements.
High CBN content improves wear resistance. Furthermore, the special binder improves the strength of the CBN particle/binder interface, and the unique sintered body manufacturing process improves the bonding strength between CBN particles, resulting in excellent chipping resistance.
Achieves stable performance in high-speed finishing of cast iron, sintered alloys, and hard-to-cut materials.
*The image is a representative image.

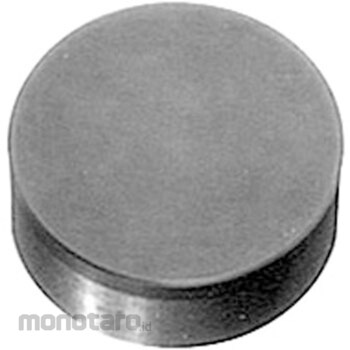

Sumitomo Electric Hard Metal Sumiboron throwaway tip
#Grup produk P114345314
Spesifikasi
| Clearance Angle (°) | 0[N] |
|---|---|
| Corner Height Tolerance (mm) | ±0.025 |
| Corner Radius (mm) | Sharp [00] |
| Cutting Blade Length (mm) | 12.70[12] |
| Grade | BN7125 |
| Inscribed Circle (mm) | 12.7 |
| Insert Thickness (mm) | 4.76[04] |
| Insert Used | Circle [R] |
| Product Type | Full rake face CBN type/regrinded type |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
