For high-speed machining of cast iron.
A material with high wear resistance due to the use of a high-hardness carbide substrate.
For high-speed, light, general-purpose cutting.
*The image is a representative image.
Sumitomo Electric Hard Metal Cutter tip
#Grup produk P114334415
Spesifikasi
| Abrasive Materials | Cast iron |
|---|---|
| Accuracy | E |
| Clearance Angle (°) | 0[N] |
| Coating | (ACK100) |
| Cutting Angle (°) | 60 |
| Cutting edge shape | Round Honing [E] |

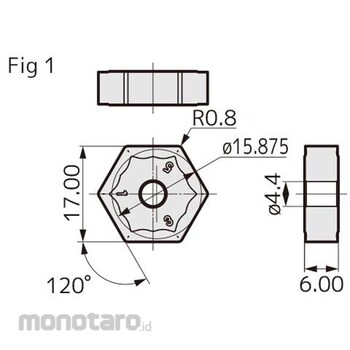

| Fig | 1 |
| Insert Thickness (mm) | 6 |
| Insert Used | Regular hexagon [H] |
| Right or Left Hand | None [N] |
| Symbol | Cutting edge length: 10, cutting angle: D |
| Thickness Tolerance (mm) | ±0.025 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
