For finishing to light cutting
* For separately shipped products, if you order by cash on delivery, it will be shipped the next day or later.

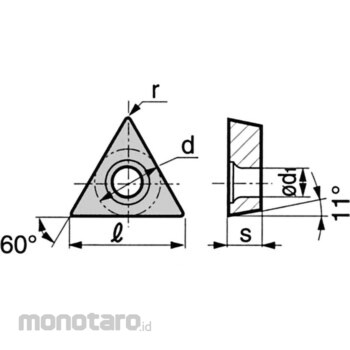

Sumitomo Electric Hard Metal Chip TPGT-SD
#Grup produk P114331056
Spesifikasi
| Accuracy Grade | G class |
|---|---|
| Blade Length l (mm) | 11 |
| Clearance Angle (°) | 11 |
| Corner Height Tolerance (mm) | ±0.025 |
| Corner Radius (mm) | 0.4 |
| Cutting Blade Length (mm) | 11 |
| Maker's Former Part No. | TPGG221L |
| Material | G10E |
| Nose Radius r (mm) | 0.4 |
| Right or Left Hand | Left |
| Shape | Equilateral triangle 60 ° |
| Socket Shape | Partially cylindrical hole one side 40 ° -60 ° |
| Thickness (mm) | 3.18 |
| Thickness Tolerance (mm) | ±0.13 |
| Thickness s (mm) | 3.18 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| Type | Positive |
| With Or Without Hole | Yes |
